| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Suitable for Horizontal Lines
- Permits flow in one direction and shuts automatically if the flow reverses.
- Disc is guided in Body as well as in Bonnet.
- Body is made of IS6912: FLB high strength nickel plated brass by hot forging.
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
Technical Data
- Working Pressure: up to 16 Bar
- Working Temperature: 0°C to +100°C

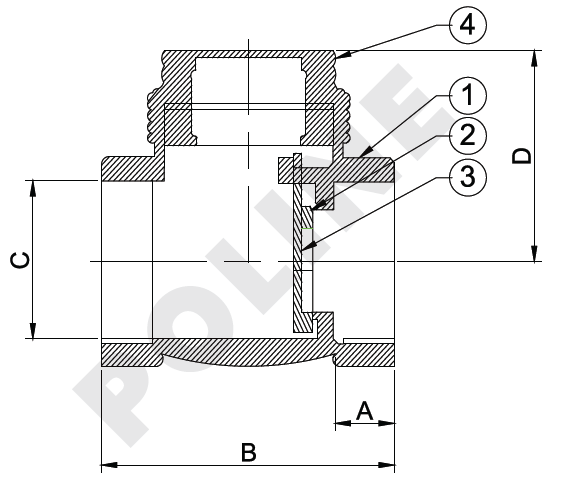

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Forged Brass CW617N |
IS 6912:FLB |
1 |
| 2 |
Disc |
Forged Brass CW617N |
IS 6912:FLB |
1 |
| 3 |
Bonnet |
Forged Brass CW617N |
IS 6912:FLB |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
