| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Body Lining Integrally Moulded And Bonded To Body
- One Piece Body Construction
- Working Pressure: 16 Bar
- Valves Are Bi-Directional
- Valve Shell Have Moulded Raised Face.
- Tight Shut Off Valve
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 2.4 MPa
- Seat: 1.76 Mpa
- Maximum Working Pressure: 1.6 MPa
- Maximum Working Temperature: 90°C

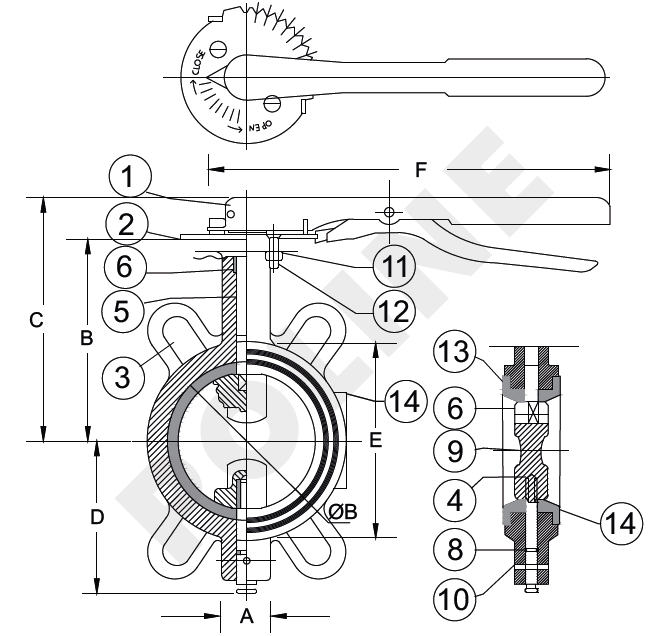

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Flow Control Lever |
Carbon Steel (Powder Coated) |
- |
1 |
| 2 |
Notch Plate |
Carbon Steel (Powder Coated) |
- |
1 |
| 3 |
Body |
Cast Iron |
IS 210 FG 200 |
1 |
| 4 |
Disc |
S.G. Iron (Epoxy Coated) |
IS 1865 Gr. 400/15 |
1 |
| 5 |
Upper Stem |
Stainless Steel |
IS 6603 Gr.12 Cr 12 |
1 |
| 6 |
Packing Bush |
PTFE |
- |
1 |
| 7 |
Lower Stem |
Stainless Steel |
IS 6603 Gr.12 Cr 12 |
1 |
| 8 |
‘O’ Ring |
Nitrile Rubber |
IS 5192-1 |
1 |
| 9 |
Bush |
PTFE |
BS EN 12086-1 |
1 |
| 10 |
L-Key Screw |
Carbon Steel |
- |
1 |
| 11 |
C-Sunk Screw & Nuts |
Carbon Steel |
- |
2 |
| 12 |
Locking Washer |
Spring Steel |
- |
2 |
| 13 |
Body Lining |
EPDM/ Nitrile |
IS 5192-1 |
1 |
| 14 |
Name Plate |
Aluminium |
- |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
