| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Screwed Female Ends to IS 554/ BS21/ ISO 7
- Full Bore, Two Piece Design
- Quarter Turn, Lever Operated
- Provided with Stainless Steel Ball
- Premium Quality PTFE Gland Packing and Seating
- Testing & Inspection Standard : 598
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 21.10 kg/cm²g(300psig)
- Seat: 15.47 kg/cm²g (220 psig)
- Maximum Working Temperature: 220°C

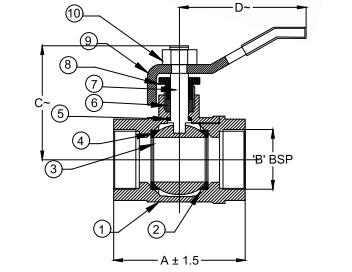

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Cast Iron |
IS 210 FG 200 |
1 |
| 2 |
Connector |
Cast Iron |
IS 210 FG 200 |
1 |
| 3 |
Ball |
Stainless Steel |
IS 6603 |
1 |
| 4 |
Body Seat Ring |
PTFE |
BS EN 12086-1 |
1 |
| 5 |
Thrust Washer |
PTFE |
- |
1 |
| 6 |
Gland Packing |
PTFE |
BS EN 12086-1 |
1 |
| 7 |
Stem |
Stainless Steel |
IS 6603 |
|
| 8 |
Gland |
Carbon Steel |
IS 1367 |
1 |
| 9 |
Lever |
Carbon Steel |
IS 1367 |
1 |
| 10 |
Nut |
Carbon Steel |
IS 1363 |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
