Salient Features
- Flanged Ends Designed To DIN 2545 PN 40 Standards
- Features A Bolted Cover And A Straight-Pattern Configuration
- Renewable Working Components Crafted From 13% Cr. Stainless Steel (S.S 410)
- Optimized Body Design For Minimal Internal Pressure Drop
- Compatible With Thermic Fluid Applications
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 6.0 MPa (60 bar)
- Maximum Working Pressure: 4.0 MPa (40 bar)
- Maximum Working Temperature: 425°C

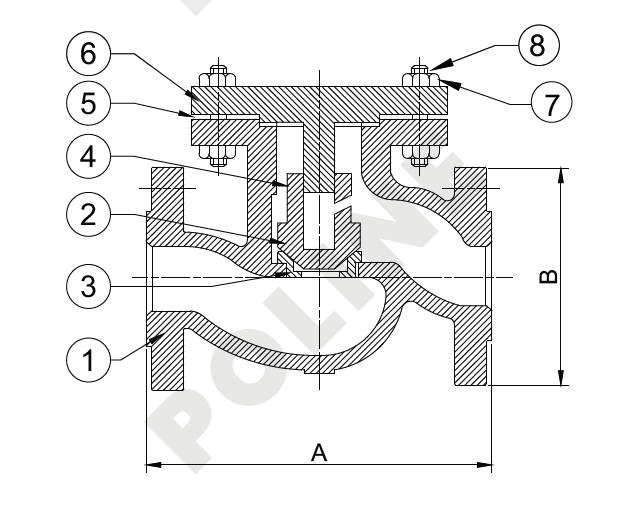

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body & Bonnet |
Cast Steel |
ASTM A 216 Gr.WCB |
1 |
| 2 |
Body Seat Ring |
Stainless Steel |
ASTM A 276 Type 410 |
1 |
| 3 |
Disc Ring |
Stainless Steel |
ASTM A 276 Type 410 |
1 |
| 4 |
Disc |
Cast Steel |
ASTM A 276 Type 410 |
1 |
| 5 |
Gasket |
Spiral Wound |
S.S. (Type 316) Graphite Filled |
1 |
| 6 |
Cover |
Cast Steel |
ASTM A 216 Gr.WCB |
1 |
| 7 |
Nuts |
H.T. Steel |
ASTM A 194 Gr. 2H |
As Reqd |
| 8 |
Studs |
Alloy Steel |
ASTM A 193 Gr. B7 |
As Reqd |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
