Cast Steel Globe Steam Stop Valve (Flanged)

Flanged Ends Conforming to DIN 2545 PN 40 Standards.
Straight Pattern with an Outside Screw, Yoke Type, Rising Stem and Bolted Bonnet.
Renewable Working Components made from 13% Cr. Stainless Steel (S.S 410).
Streamlined Body Design Minimizes Internal Pressure Drop.
Operated Via a Hand Wheel.
Includes a Feature for Re-Packing Under Pressure.
Compatible with Thermic Fluid Applications.

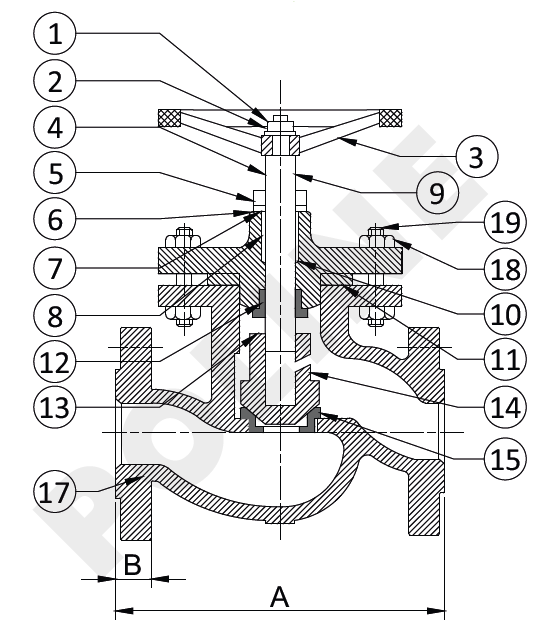

MATERIAL LIST
Part No	Part Name	Material	Specification	Qty
1	Nut	Carbon Steel	-	1
2	Washer	Carbon Steel	-	1
3	Hand wheel	S.G Iron	IS 1865 Gr. 400 / 15	1
4	Stem	Stainless Steel	ASTM A 276 Type 410	1
5	Yoke Bush	Aluminium Bronze	BS EN 1982 AB – 1	1
6	Locking Screw	Carbon Steel	IS 1367	1
7	Gland Flange	Cast Steel	IBR 73-80 Gr. B	1
8	Gland	Stainless Steel	ASTM A 276 Type 410	1
9	Bonnet	Cast Steel	IBR 73-80 Gr. B	1
10	Gland Packing	Braided Graphite	-	-
11	Gasket	Spiral Wound S.S (Type 316) Graphite Filled	-	1
12	Back Seat Bush	Aluminium Bronze	BS EN 1982 AB – 1	1
13	Stem Nut	Stainless Steel	ASTM A 276 Type 410	1
14	Disc	Cast Steel	IBR 73-80 Gr. B	1
15	Seat Ring	Stainless Steel	ASTM A 276 Type 410 / ASTM A 182 Gr. F6a	1
16	Body Seat Ring	Stainless Steel	ASTM A 276 Type 410 / ASTM A 182 Gr. F6a	1
17	Body	Cast Steel	IBR 73-80 Gr. B	1
18	Nuts	H.T Steel	ASTM A 194 Gr. 2H	As Reqd
19	Studs	Alloy Steel	ASTM A 193 Gr. B7	As Reqd
20	Nuts For Eye Bolts	H.T Steel	ASTMA 194 Gr. 2H	2
21	Eye Bolts	Stainless Steel	ASTM A 182 Gr. F6a	2
22	Pins For Eye Bolts	Stainless Steel	ASTM A 276 Type 410	2
