PCS -3007
Cast Steel Globe Valve
PCS -3007
Cast Steel Globe Valve
Salient Features
- Flanged ends conform to DIN 2545 PN 40.
- Designed with a straight pattern, featuring an outside screw, yoke type, rising stem, and bolted bonnet.
- Equipped with renewable working components made of 13% chromium stainless steel (S.S 410).
- Streamlined body design ensures minimal pressure drop inside the valve.
- Operated by a handwheel.
- Includes a provision for re-packing under pressure.
- Suitable for use with thermic fluid applications as well.
Technical Data
- Shell: 6 MPa (870 psi)
- Maximum Working Pressure: 4 MPa (580 psi)
- Maximum Working Temperature: 425°C

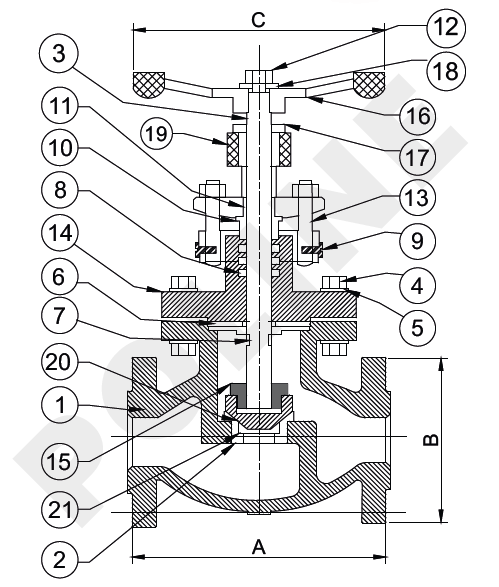

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Cast Steel | ASTM A 216 Gr. WCB | 1 |
| 2 | Body Seat Ring | Stainless Steel | ASTM A 276 Type 410 / ASTM A 182 Gr. F6a | 1 |
| 3 | Stem | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 4 | Studs | Alloy Steel | ASTM A 193 Gr. B7 | As Reqd |
| 5 | Nuts | H.T Steel | ASTM A 194 Gr. 2H | As Reqd |
| 6 | Gasket | Spiral Wound | S.S (Type 304) Graphite Filled | 1 |
| 7 | Back Seat Bush | Aluminium Bronze | BS EN 1982 AB – 1 | 1 |
| 8 | Gland Packing | Braided Graphite | IS 4687 | - |
| 9 | Pins For Eye Bolts | Stainless Steel | ASTM A 276 Type 410 | 2 |
| 10 | Gland | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 11 | Gland Flange | Cast Steel | - | 1 |
| 12 | Nut | Carbon Steel | - | 1 |
| 13 | Eye Bolts | Stainless Steel | ASTM A 276 Type 410 | 2 |
| 14 | Bonnet | Cast Steel | ASTM A 216 Gr. WCB | 1 |
| 15 | Stem Nut | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 16 | Hand wheel | S.G Iron | IS 210 Gr. FG200 | 1 |
| 17 | Yoke Bush | Aluminium Bronze | BS EN 1982 AB – 1 | 1 |
| 18 | Washer | Carbon Steel | - | 1 |
| 19 | Locking Screw | Carbon Steel | IS 1367 | 1 |
| 20 | Disc | Cast Steel | ASTM A 216 Gr. WCB | 1 |
| 21 | Seat Ring | Stainless Steel | ASTM A 276 Type 410 / ASTM A 182 Gr. F6a | 1 |
| 22 | Nuts For Eye Bolts | H.T Steel | ASTMA 194 Gr. 2H | 2 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A ± 2 | B | C |
| 25 | 127 | 108 | 100 |
| 40 | 165 | 127 | 135 |
| 50 | 303 | 152 | 200 |
| 65 | 216 | 178 | 250 |
| 80 | 21 | 190 | 250 |
| 100 | 292 | 229 | 300 |
| 125 | 356 | 254 | 350 |
| 150 | 406 | 279 | 350 |
| 200 | 495 | 343 | 400 |
| 250 | 622 | 406 | 450 |
| 300 | 698 | 483 | 500 |
