| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Permits flow in one direction and shuts automatically if the flow reverses.
- Stainless Steel (SS 304) Ø1 mm perforated sheet screen is guided in the body and cover.
- Body is made of IS6912: FLB high strength nickel plated brass by hot forging.
- Fine finish and smooth contours reduce pressure drop in the strainer.
- Large screening area makes the strainer efficient in performance.
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
Technical Data
- Working Pressure: up to 25 Bar
- Working Temperature: 0°C to+100°C

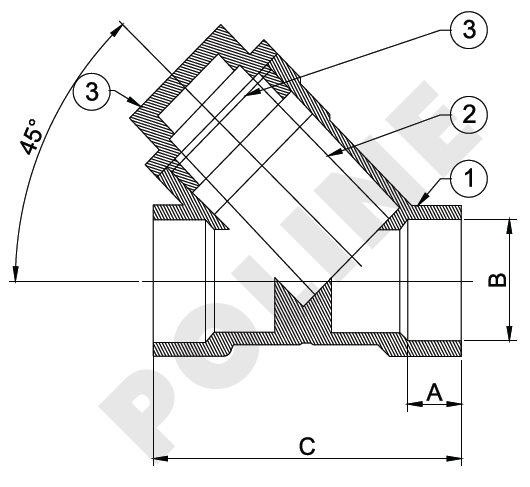

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Forged Brass CW617N |
IS 6912:FLB |
1 |
| 2 |
Screen |
Stainless Steel |
SS304 |
1 |
| 3 |
Gasket |
PTFE |
- |
1 |
| 4 |
Cover |
Forged Brass CW617N |
IS 6912:FLB |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
