| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|

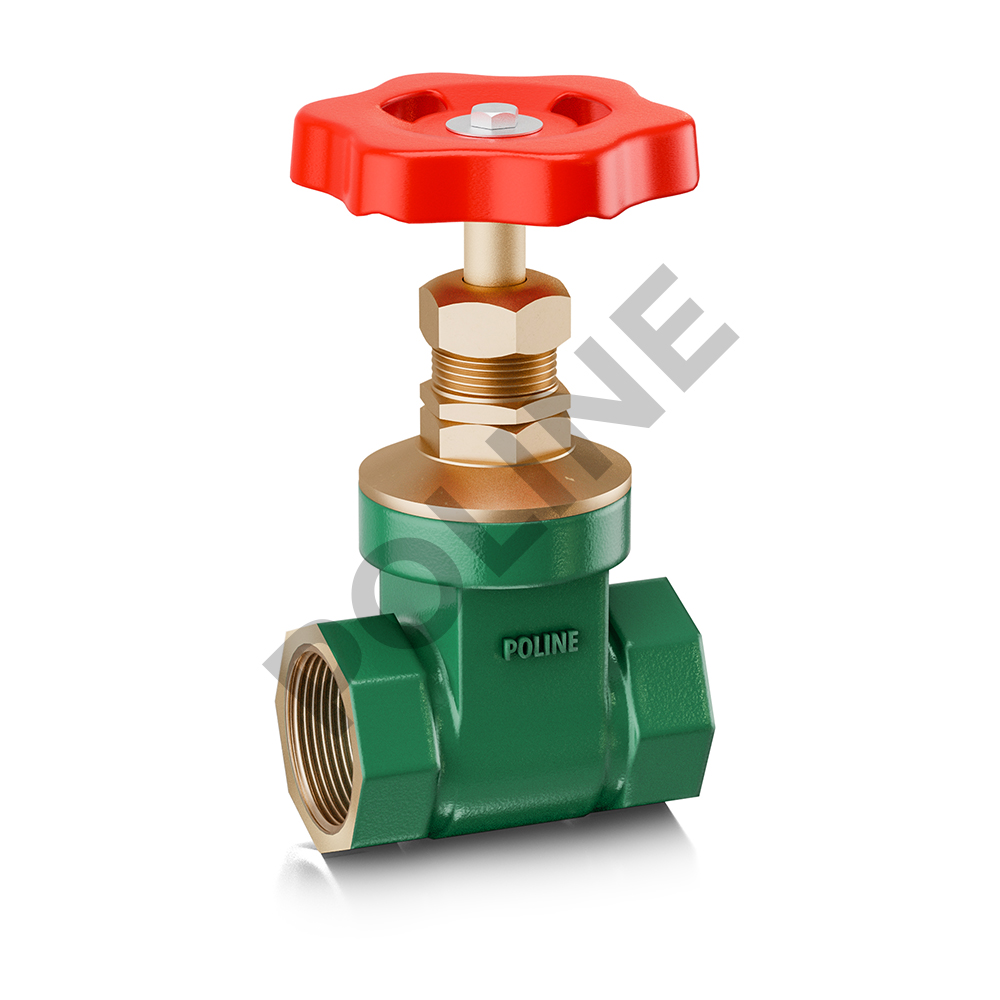

Salient Features
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
- Screwed in bonnet ,Inside Screw, Non-Rising Stem, Non-Rising Stem, Integral Seat, Solid Wedge
- Designed sheet metal handlewheel for a firm grip and convenient operation
- Premium quality PTFE Gland packing
- Design standard IS 778, Class-2
- Provision for re-packing under pressure
Technical Data
- Test Pressure (Hydrostatic) : Shell: 1.5 MPa
- Seat & Back Seat : 1.0 Mpa
- Maximum Working Temperature: 45°C

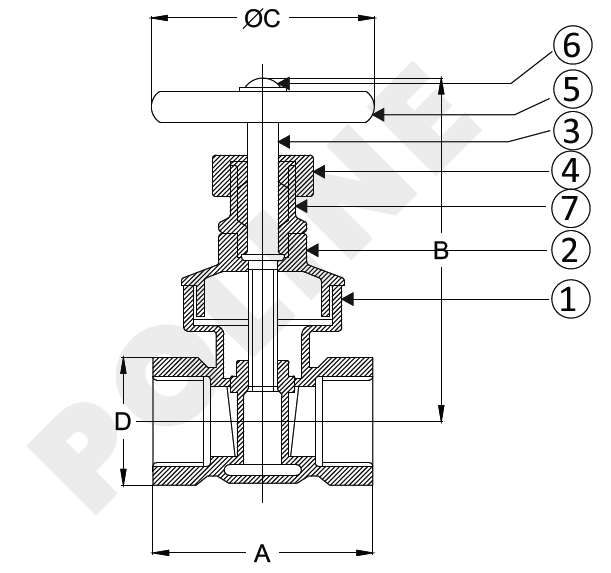

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Bronze |
Is 318 Gr. LTB 2 |
1 |
| 2 |
Gland |
Forged Brass |
S 6912 Gr. FLB |
1 |
| 3 |
Gland Nut |
Forged Brass / Bronze |
S 6192 Gr. FLB / IS 318Gr. LTB 2 |
1 |
| 4 |
Gland Packing |
PTFE |
BSEN 12086 |
1 |
| 5 |
Stem |
Forged Brass |
IS 6192 Gr. FLB |
1 |
| 6 |
Stuffing Box |
Forged Brass |
S 6912 Gr. FLB |
1 |
| 7 |
Bonnet |
Forged Brass |
IS 6912 GR.FLB |
1 |
| 8 |
Wedge |
Bronze |
IS 318 Gr. LTB 2 |
1 |
| 9 |
Handwheel |
Sheet Metal (Powder Coated) |
|
1 |
| 10 |
Washer |
Carbon Steel (Zinc Plated) |
|
|
| 11 |
Screw / Bolt |
Carbon Steel (Zinc Plated) |
|
|
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
