Salient Features
- Designed according to IS 14846 PN 1.6 specifications
- Features a bolted bonnet with an internal screw and a non-rising stem
- Built with a robust and durable design
- Operated using a hand wheel
- Flanged ends conforming to IS 1538 standards
Technical Data
- Shell: 2.4 MPa
- Seat: 1.6 MPa
- Maximum Working Temperature: 45°C
| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Cast Iron |
IS 210 Gr. FG 200 |
1 |
| 2 |
Seat Ring |
Bronze |
IS 318 Gr. LTB 2 |
4 |
| 3 |
Hollow Wedge |
Cast Iron |
IS 210 Gr. FG 200 |
1 |
| 4 |
Stem Bush |
Bronze |
IS 318 Gr. LTB 2 |
1 |
| 5 |
Gasket |
Rubber |
IS 638 Type B |
1 |
| 6 |
Bonnet |
Cast Iron |
IS 210 Gr. FG 200 |
1 |
| 7 |
Stem |
Stainless Steel |
IS 6603 Gr. 12 Cr. 12 |
1 |
| 8 |
Stuffing Box |
Cast Iron |
IS 210 Gr. FG 200 |
1 |
| 9 |
Gland Packing |
Hemp & Jute |
IS 5414 |
- |
| 10 |
Gland Flange |
Cast Iron |
IS 210 Gr. FG 200 |
1 |
| 11 |
Hand wheel |
Cast Iron |
IS 210 Gr. FG 200 |
1 |
| 12 |
Washer |
Carbon Steel |
- |
1 |
| 13 |
Bolt |
Carbon Steel |
IS 1363 |
1 |
| 14 |
Bolt & Nut |
Carbon Steel |
IS 1363 |
As Reqd |
| 15 |
Stud / Bolt |
Carbon Steel |
IS 1363 |
2 |
| 16 |
Nut |
Carbon Steel |
IS 1363 |
As Reqd |
|

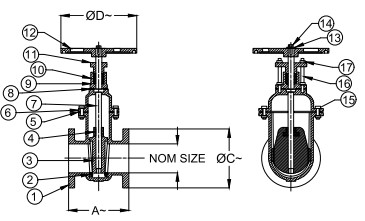

SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
