Salient Features
- Conforms To Api 602 And Bsen Iso 15761 (Bs 5352) Design Standards
- The Body And Bonnet Are Phosphate To Provide Enhanced Rust Resistance
- Features A Bolted Bonnet With An Outside Screw, Yoke Type, And Rising Stem
- Equipped With Screwed Female Ends Compatible With Bspt / Npt Or Socket Welded To Ansi B16.11
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 20.7 Mpa (3000 Psig)
- Shell: 20.7 Mpa (3000 Psig)
- Seat (Pneumatic): 0.69 Mpa (100 Psig)
- Maximum Working Temperature: 425°C

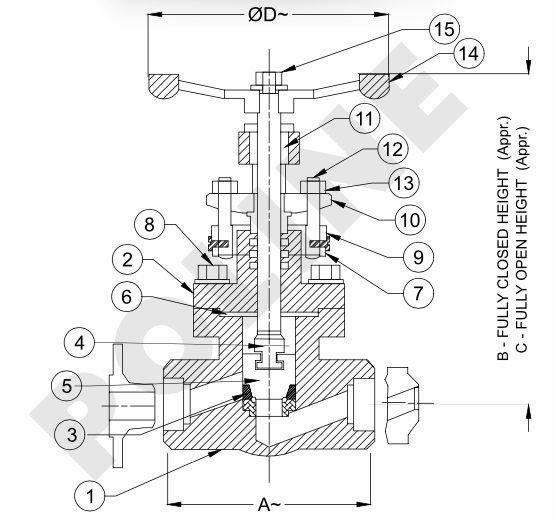

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Forged Steel |
ASTM A105 |
1 |
| 2 |
Bonnet |
Forged Steel |
ASTM A105 |
1 |
| 3 |
Seat Ring |
Stainless Steel |
ASTM A276 TP 410 + ST6 |
2 |
| 4 |
Wedge |
Stainless Steel |
ASTM A276 TP 410 + ST6 |
1 |
| 5 |
Spindle |
Stainless Steel |
ASTM A276 TP 410 |
1 |
| 6 |
Gasket |
Spiral Wound |
S.S (TYPE 304) GRAPHITE FILLED |
1 |
| 7 |
Packing |
Non Asbestos Graphite With Corrosion Inhibitor |
- |
4 |
| 8 |
Bolt |
Alloy Steel |
ASTM A193 GR. B7 |
4 |
| 9 |
Gland Bush |
Stainless Steel |
SS410 |
1 |
| 10 |
Gland Flange |
Stainless Steel |
ASTM A276 TP 410 |
1 |
| 11 |
Yoke Sleeve |
Stainless Steel |
SS416 |
1 |
| 12 |
Eye Bolt |
Alloy Steel |
ASTM A193 GR. B7 |
2 |
| 13 |
Eye Bolt Nut |
Alloy Steel |
ASTM A193 GR. 2H |
2 |
| 14 |
Handwheel |
Ductile Iron |
ASTM A 536 / IS 1865 |
1 |
| 15 |
Handwheel Nut |
Alloy Steel |
ASTM A193 GR. 2H |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
