| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Basic Design and manufacture according to JIS B2084
- Structure Length according to JIS B2002
- Flange ends complied with JIS B2220
- Inspection and tested according to JIS B2003
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 3 MPa
- Seat & Back Seat (Hydrostatic) : 2.2 MPa
- Maximum Working Temperature: 150°C

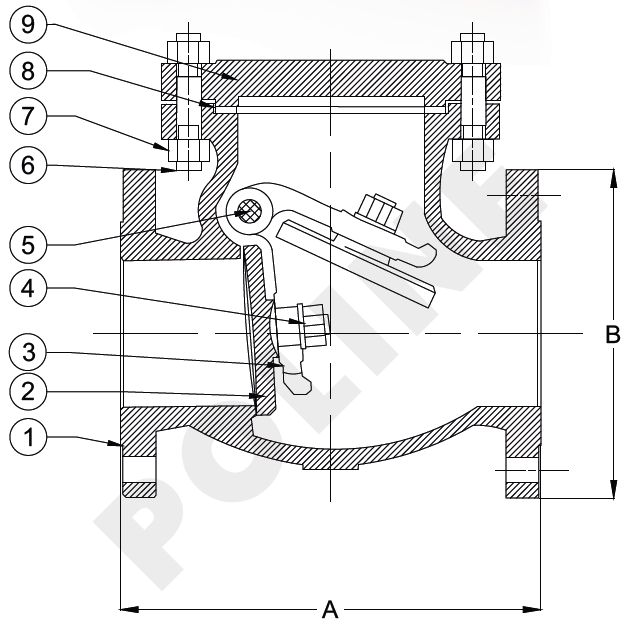

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Cast Steel |
ASTM A 216 Gr. WCB |
1 |
| 2 |
Disc |
Cast Steel |
ASTM A 216 Gr. WCB |
1 |
| 3 |
Seat Ring |
Carbon Steel with 13% Cr. |
|
1 |
| 4 |
Disc Nut |
Alloy Steel |
ASTM A 193 Gr. B7 |
1 |
| 5 |
HINGE |
Cast Steel |
ASTM A 216 Gr. WCB |
1 |
| 6 |
Hinge Pin |
Stainless Steel |
SS AISI 410 |
1 |
| 7 |
Nuts |
H.T Steel |
ASTM A 194 Gr. 2 H |
1 |
| 8 |
Gasket |
Spiral Wound |
S.S (Type 304) Graphite Filled |
1 |
| 9 |
Bonnet |
Cast Steel |
ASTM A 216 Gr. WCB |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
