| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Ball valve are full bore, Quarter turn, Knob Handle operated.
- Valve body is made of IS6912: FLB high strength Chrome plated brass by hot forging.
- Suitable to control the flow of Water, Oil, and Air in any threaded piping system.
- Screwed Female X Female Ends to IS 554 / BS 21 / ISO 7
Technical Data
- Working Pressure: up to 16 Bar
- Working Temperature: -20° to+180°

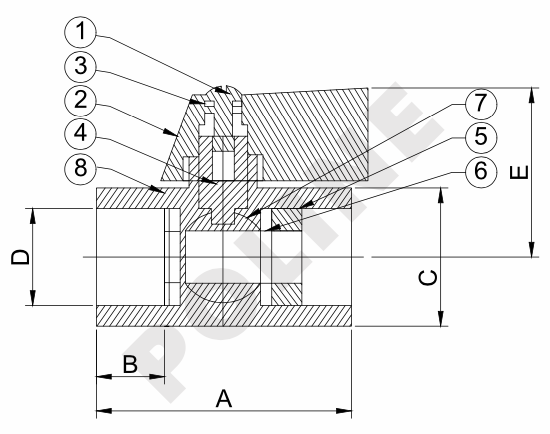

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Screw |
Chrome Plated Steel |
- |
1 |
| 2 |
Handle |
Polymer |
- |
1 |
| 3 |
Washer |
NBR |
- |
1 |
| 4 |
Spindle |
Brass CW617N |
IS 6912:FLB |
1 |
| 5 |
End Adaptor |
Brass CW617N |
IS 6912:FLB |
1 |
| 6 |
Seat |
PTFE |
- |
2 |
| 7 |
Ball |
Chrome Plated Brass CW617N |
IS 6912:FLB |
1 |
| 8 |
Body |
Chrome Plated Brass CW617N |
IS 6912:FLB |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
