| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Ball valve are full bore, Quarter turn and knob operated
- Valve body is made of IS6912: FLB high strength nickel plated brass by hot forging.
- Suitable to control the flow of fuel gases in any threaded piping system.
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
- EN 331:2015 Approved
Technical Data
- Working Pressure: up to 10 Bar
- Working Temperature: -20° to+120°

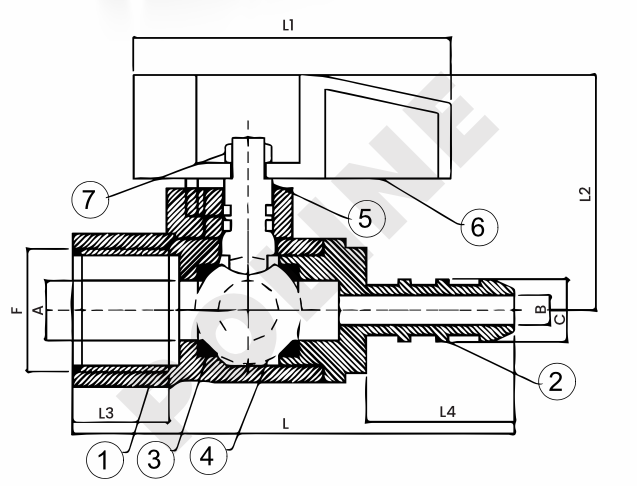

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
BODY |
FORGED BRASS CW617N |
IS 6912:FLB |
1 |
| 2 |
NOZZLE |
FORGED BRASS CW617N |
IS 6912:FLB |
1 |
| 3 |
SEAT RING |
PTFE |
- |
2 |
| 4 |
BALL |
FORGED BRASS (HARD CHROME PLATED) |
IS 6912:FLB |
1 |
| 5 |
SPINDLE |
FORGED BRASS CW614N |
IS 6912:FLB |
1 |
| 6 |
HANDLE |
ALUMINUM |
- |
1 |
| 7 |
LOCK NUT |
BRASS CHROME PLATED |
- |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
