| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Pressure Rating : PN-16
- Body Material cum Standard : Cast Iron
- Pressure Description : Wafer Type Spring Loaded
- Type of Seat : EPDM Rubber Lining
- Type of Disc : Ductile Iron Disc
- Trim : Spring & Pins SS 304
- End Details : Wafer type suitable for clamping between flanges as per ASME B 16.5 Class-150
Technical Data
- Body Test Pressure : 24 Kg/cm²
- Seat Test Pressure : 16 Kg/cm²

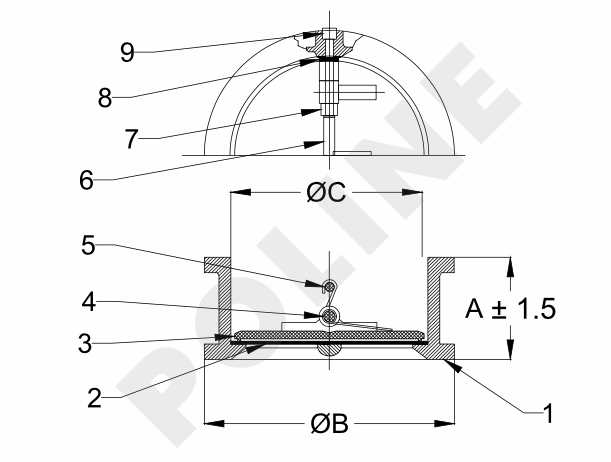

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
