PB-1011
Brass Control Valve
PB-1011
Brass Control Valve
Salient Features
- Control are full bore, Two Piece Design, Quarter turn,Handle Operated
- Body is made of ID6912:FLB high strenght nickel plated brass by hot forging.
- Suitable to control the flow of Water in any threaded piping system.
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
Test Pressure(Hydrostatic):
- Working Pressure: up to 25 Bar
- Working Temperature: -0° to + 100°

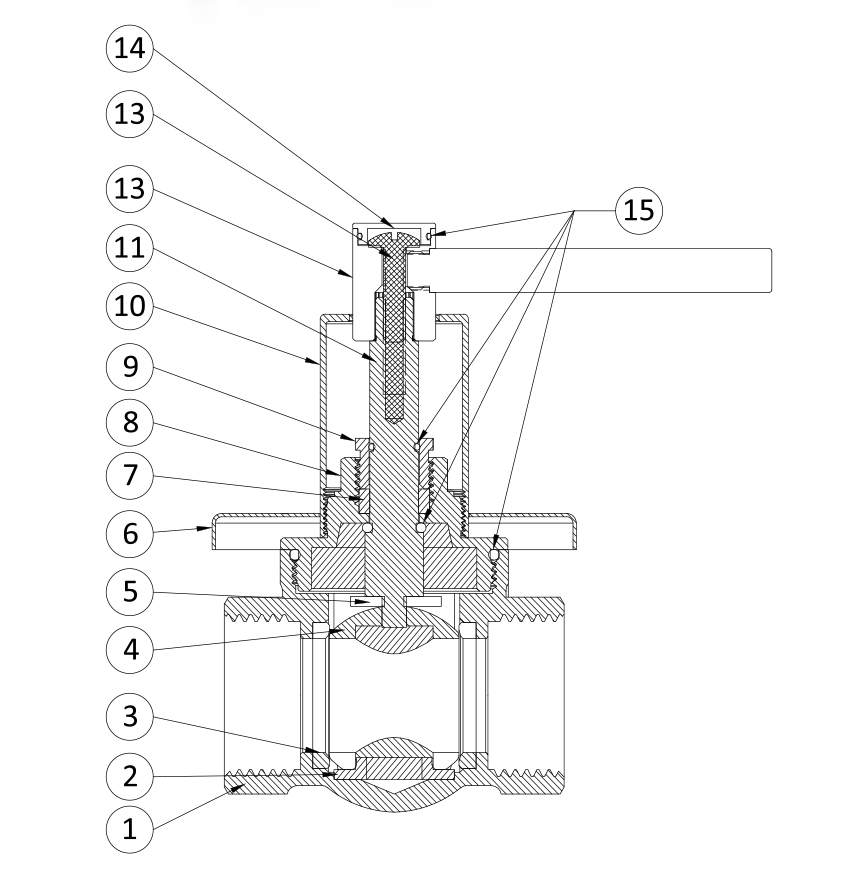

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | BODY | Brass Forged Nickel Plated | CW617M -EN 12165 | 1 |
| 2 | Support Washer | Rubber | NBR | 1 |
| 3 | Seal Ring | PTFE | PTFE | 1 |
| 4 | Stopper Plate | Stainless Steel | S S 304 | 1 |
| 5 | Flange | Brass Polished NiCr Plated | CW508L -EN12152 | 1 |
| 6 | Ball | Forged Brass | IS 6912 : FLB | 1 |
| 7 | Seat Ring | PTFE | PTFE | 1 |
| 8 | Adaptor Nut | Brass Nickel Plated | CW617N -EN 12165 | 1 |
| 9 | Gland Nut | Brass Nickel Plated | CW614N -EN 12165 | 1 |
| 10 | Glassy | Brass Polished NiCr Plated | CW614N -EN 12165 | 1 |
| 11 | Spindle | Brass Natural | CW614N -EN 12165 | 1 |
| 12 | Handle Lever | Brass Polished NiCr Plated | CW614N -EN 12165 | 1 |
| 13 | Screw | Mild Steel Tin Plated | Mild Steel | 1 |
| 14 | Cap | Brass Polished NiCr Plated | CW614N -EN 12165 | 1 |
| 15 | O - Ring | Rubber | NBR | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |

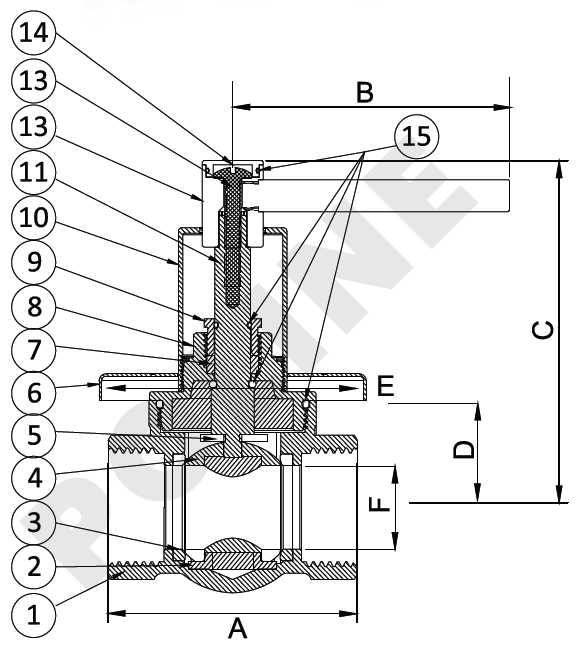

| SIZE DESCRIPTION |
|---|
| DN | A | B | C | D | E | F |
| 15 | 54 | 78 | 90 | 23 | 75 | 14 |
| 20 | 61 | 78 | 94 | 26 | 75 | 19 |
| 25 | 70 | 78 | 100 | 30 | 75 | 24 |
| 40 | 92 | 78 | 107 | 41 | 75 | 36 |
