PCS -3003
Cast Carbon Steel “Y” Type Strainer
PCS -3003
Cast Carbon Steel “Y” Type Strainer
Salient Features
- Flanged Ends Conforming to BS 10 Table ‘J’.
- Guided Stainless Steel (S.S 304) Perforated Sheet Screen (Ø1 Mm Perforations) Integrated into The Body and Cover.
- Equipped with A Drain Plug to Expel Accumulated Debris.
- Engineered with A Fine Finish and Smooth Contours to Reduce Internal Pressure Drop.
- Generous Screening Area Enhances Strainer Efficiency.
- Compatible with Thermic Fluid Applications.
Technical Data
- Test Pressure (Hydrostatic) : 4.9MPa (kg/cm²g)
- Maximum Working Pressure (Steam) : 2.46 MPa (24.60 kg/cm²g)
- Maximum Working Temperature: 425°C

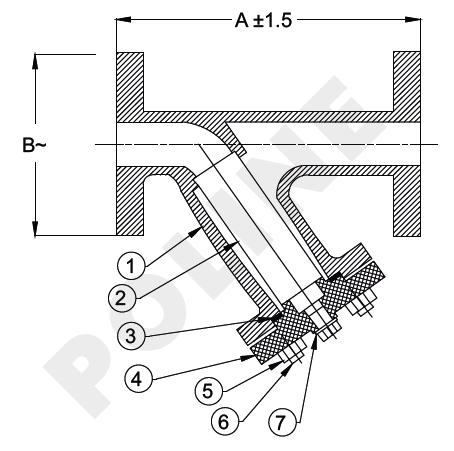

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Cast Steel | ASTM A216 Gr WCB | 1 |
| 2 | Screen (Ø1 mm Perforation) | Stainless Steel | Type 304 | 1 |
| 3 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 4 | Bonnet | Cast Steel | ASTM A216 Gr WCB | 1 |
| 5 | Nuts | H.T Steel | ASTM A 194 Gr. 2H | As Reqd |
| 6 | Studs | Alloy Steel | ASTM A 193 Gr. B7 | As Reqd |
| 7 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A ±1.5 | B~ |
| 25 | 127 | 108 |
| 40 | 165 | 127 |
| 50 | 203 | 152 |
| 65 | 216 | 178 |
| 80 | 241 | 190 |
| 100 | 292 | 229 |
| 125 | 356 | 254 |
| 150 | 406 | 279 |
| 200 | 495 | 343 |
| 250 | 622 | 406 |
