| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Control valve are full bore, Two Piece Design, Quarter turn, Handle operated
- Body is made of IS6912: FLB high strength nickel plated brass by hot forging.
- Suitable to control the flow of Water in any threaded piping system.
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
Technical Data
- Working Pressure: up to 25 Bar
- Working Temperature: 0°C to +100°C

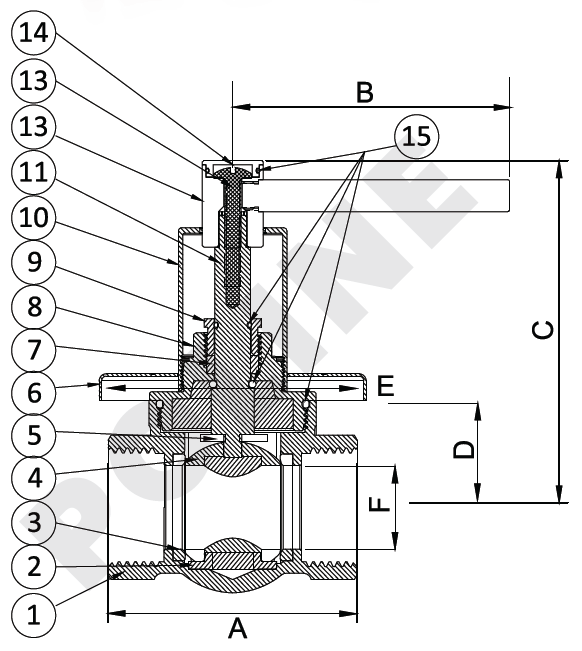

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
