| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Screwed Female Ends to BSPT
- Stainless Steel (SS 304) perforated sheet screen (01 Perforation) is guided in body and bonnet
- Fine finish and smooth contours to minimize pressure drop inside the strainer
- Large Screening area makes the strainer highly efficient in performance
- Testing & Inspection Standard : 598
Technical Data
- Shell: 21.10 kg/cm2 (300 psig)
- Maximum Working Pressure (Steam): 10.55 kg/cm² g (150 psig)
- Maximum Working Temperature: 220 °C

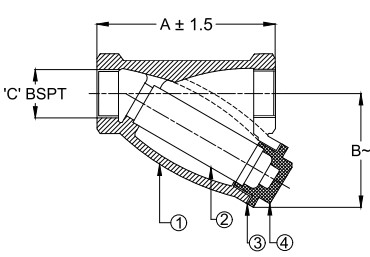

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Cast Iron |
IS 210 FG 200 |
1 |
| 2 |
Mesh Type |
Stainless Steel |
IS 6603 |
1 |
| 3 |
Gasket |
Steam Joining Sheet |
IS 2712 Gr. W/3 |
1 |
| 4 |
Cover |
Cast Iron |
IS 210 FG200 |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
