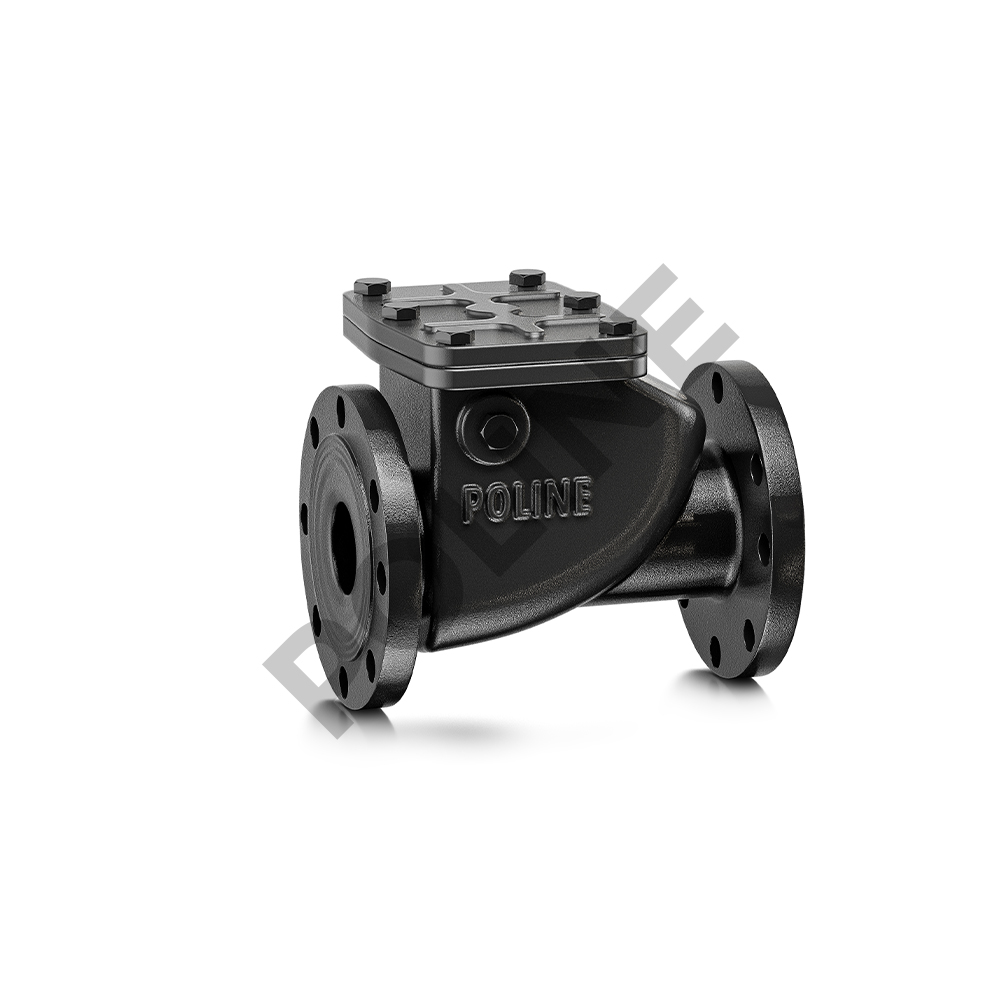

| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Compliant With IS 5312 – 1 Design Standards
- Flanged Ends According To IS 1538 Specifications
- Swing-Type Seating Design
- Secured With A Bolted Cover
- Replaceable Seat With A High-Quality Rubber Flap
- Flexible Installation Options (Horizontal Or Vertical)
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 2.4 MPa
- Seat: 1.6 MPa
- Maximum Working Temperature: 80°C

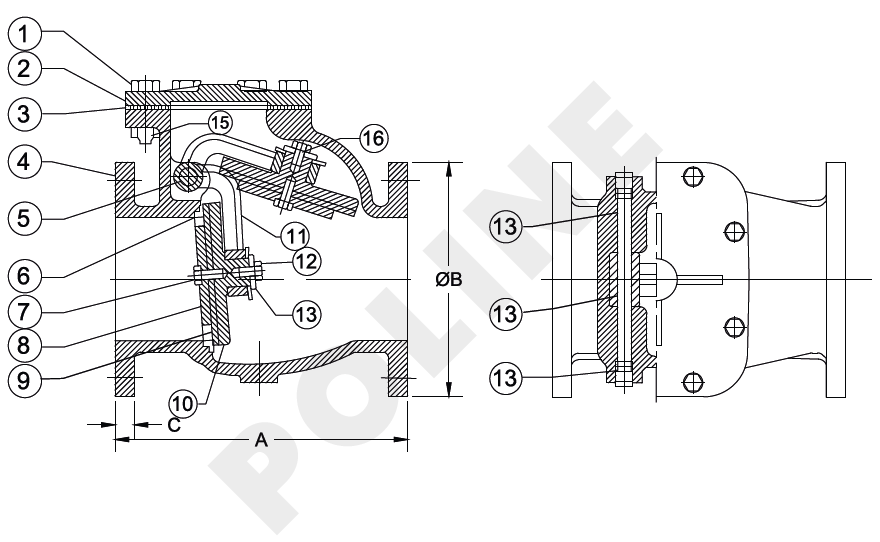

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Cast Iron |
IS 210 FG 200 |
1 |
| 2 |
Cover |
Cast Iron |
IS 210 FG 200 |
1 |
| 3 |
Gasket |
Nitrile Rubber |
IS 638 Type B |
1 |
| 4 |
Hinge Pin |
Stainless Steel |
IS 6603 |
1 |
| 5 |
Body Seat Ring |
Bronze |
IS 318 LTB 2 |
1 |
| 6 |
Bolts |
Carbon Steel |
IS 1363 |
1 |
| 7 |
Washer |
Carbon Steel |
- |
1 |
| 8 |
Disc Facing |
Nitrile Rubber |
IS 638 Type B |
1 |
| 9 |
Disc |
Cast Iron |
IS 210 FG 200 |
1 |
| 10 |
Hinge |
Cast Iron |
IS 210 FG 200 |
1 |
| 11 |
Bolt (Optional) |
Carbon Steel |
IS 1363 |
1 |
| 12 |
Plug |
Stainless Steel |
IS 6603 |
2 |
| 13 |
Nut |
Carbon Steel |
IS 1363 |
As Reqd |
| 14 |
Split Pin (Optional) |
Carbon Steel |
- |
1 |
| 15 |
Hinge Bush |
Bronze |
IS 318 LTB 2 |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
