| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Flanged Ends Conforming To BS 10 Table ‘J’
- Guided Stainless Steel (S.S 304) Perforated Sheet Screen (Ø1 Mm Perforations) Integrated Into The Body And Cover
- Equipped With A Drain Plug To Expel Accumulated Debris
- Engineered With A Fine Finish And Smooth Contours To Reduce Internal Pressure Drop
- Generous Screening Area Enhances Strainer Efficiency
- Compatible With Thermic Fluid Applications
Technical Data
- Test Pressure (Hydrostatic):
- Maximum Working Pressure: 2.46 MPa (24.60 kg/cm²g)
- Maximum Working Temperature: 425°C

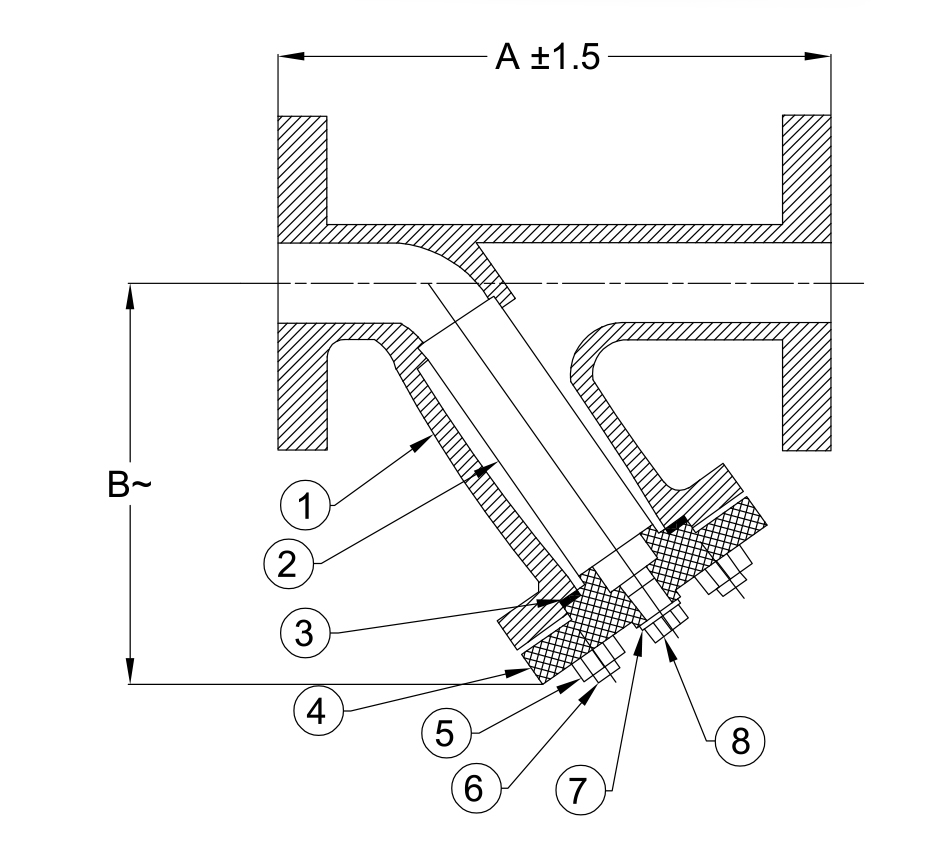

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Cast Steel |
ASTM A216 Gr WCB |
1 |
| 2 |
Screen (Ø1 mm Perforation) |
Stainless Steel |
Type 304 |
1 |
| 3 |
Gasket |
Steam Jointing Sheet |
IS 2712 Gr. W/3 |
1 |
| 4 |
Bonnet |
Cast Steel |
ASTM A216 Gr WCB |
1 |
| 5 |
Nuts |
H.T Steel |
ASTM A 194 Gr. 2H |
As Reqd |
| 6 |
Studs |
Alloy Steel |
ASTM A 193 Gr. B7 |
As Reqd |
| 7 |
Gasket |
Steam Jointing Sheet |
IS 2712 Gr. W/3 |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
