PB-1010
Brass Y - Strainer
Salient Features
- Permits flow in one direction and shuts automatically if the flow reverses.
- Stainless Steel (S.S 304) Ø1 mm perforated sheet screen is guided in the body and cover.
- Body is made of ID6912:FLB high strenght nickel plated brass by hot forging.
- Fine finish and smooth contours reduce pressure drop in the strainer.
- Large screening area makes the strainer efficient in performance.
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
Test Pressure(Hydrostatic):
- Working Pressure: up to 25 Bar
- Working Temperature: -0° to + 100°
| MATERIAL LIST |
| Part No |
Part Name |
Material |
Specification |
Qty |
| 1 |
BODY |
FORGED BRASS |
IS 6912:FLB |
1 |
| 2 |
SCREEN |
STAINLESS STEEL |
SS304 |
|
| 3 |
GASKET |
PTFE |
- |
1 |
| 4 |
COVER |
FORGED BRASS |
IS 6912 : FLB |
1 |
| SUITABLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
| |
|
|
|
|

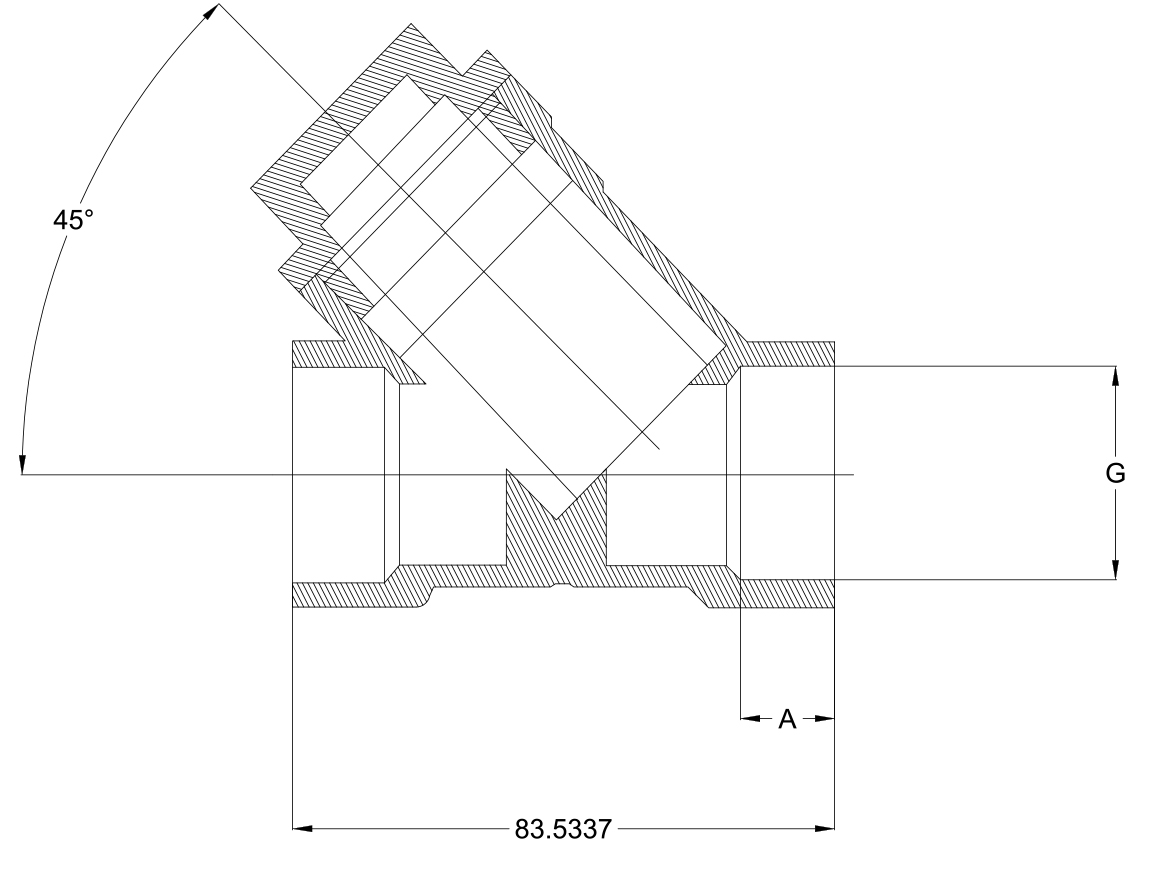

| Size (inches) |
Size (mm) |
A |
B |
C |
| 1/2" |
15 |
12 |
19 |
56 |
| 3/4" |
20 |
14 |
24 |
70 |
| 1" |
25 |
16 |
30 |
70 |
The information provided here serves as guidelines only and is subject to possible modification.
