Butterfly Valve PN 1.6 with SG Iron Disc - Lever Operated
PCI-2001
Butterfly Valve PN 1.6 with SG Iron Disc - Lever Operated
Salient Features
- Body Lining Integrally Moulded and Bonded To Body.
- One Piece Body Construction
- Working Pressure: 16 Bar
- Valves Are Bi-Directional
- Valve Shell Have Moulded Raised Face.
- Tight Shut Off Valve
Technical Data
- Shell : 2.4 MPa
- Seat : 1.76 MPa
- Working Pressure: 1.6 MPa
- Working Temperature: 90°C
| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Flow Control Lever | Carbon Steel (Powder Coated) | - | 1 |
| 2 | Notch Plate | Carbon Steel (Powder Coated) | - | 1 |
| 3 | Body | Cast Iron | IS 210 FG 200 | 1 |
| 4 | Disc | S.G. Iron (Epoxy Coated) | IS 1865 Gr. 400/15 | 1 |
| 5 | Upper Stem | Stainless Steel | IS 6603 Gr.12 Cr 12 | 1 |
| 6 | Packing Bush | PTFE | - | 1 |
| 7 | Lower Stem | Stainless Steel | IS 6603 Gr.12 Cr 12 | 1 |
| 8 | ‘O’ Ring | Nitrile Rubber | IS 5192-1 | 1 |
| 9 | Bush | PTFE | BS EN 12086-1 | 1 |
| 10 | L-Key Screw | Carbon Steel | - | 1 |
| 11 | C -Sunk Screw & Nuts | Carbon Steel | - | 1 |
| 12 | Locking Washer | Spring Steel | - | 2 |
| 13 | Body Lining | EPDM/Nitrile | IS 5192-1 | 1 |
| 14 | Name Plate | Aluminium | - | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|

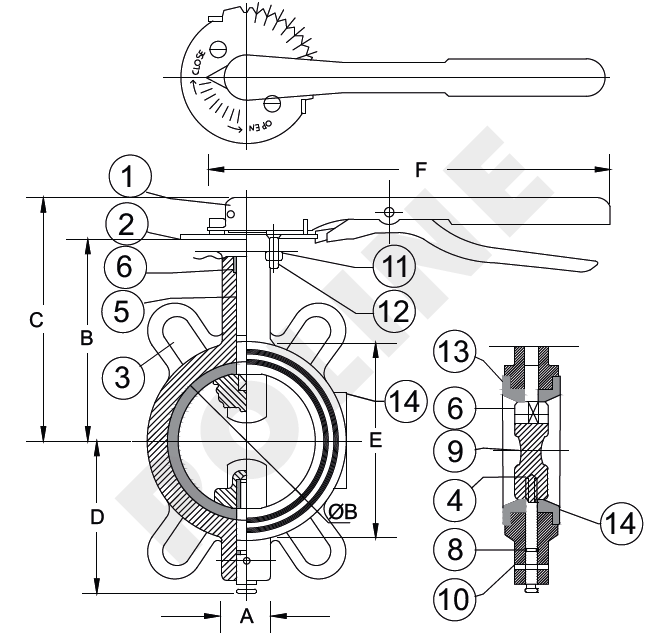

| Size (mm) | A | B | C | D | E | F |
| 40 | 33 | 108 | 129 | 52 | 40 | 200 |
| 50 | 43 | 118 | 139 | 64 | 50 | 200 |
| 65 | 46 | 126 | 147 | 72 | 65 | 200 |
| 80 | 46 | 132 | 153 | 80 | 80 | 200 |
| 100 | 52 | 145 | 169 | 96 | 100 | 240 |
| 125 | 56 | 166 | 190 | 108 | 125 | 240 |
| 150 | 56 | 176 | 202 | 123 | 150 | 280 |
| 200 | 60 | 205 | 235 | 151 | 200 | 355 |
