PCS-3004
Cast Steel Ball Valve Three Piece Design (Screwed)
PCS-3004
Cast Steel Ball Valve Three Piece Design (Screwed)
Salient Features
- Designed to BS EN ISO 17292 (Formerly BS 5351) Standards.
- Features Screwed Female Ends Available in BSPT, NPT, Or Socket Weld Configurations.
- Reduced Bore with A Three-Piece Construction.
- Exceptional Quality and Performance.
Technical Data
- Shell: 3.1 MPa (31 kg/cm²g)
- Seat: 2.1 MPa (21 kg/cm²g)
- Seat (Steam): 1.055 MPa (10.55 kg/cm²g)
- Maximum Working Temperature: 220°C

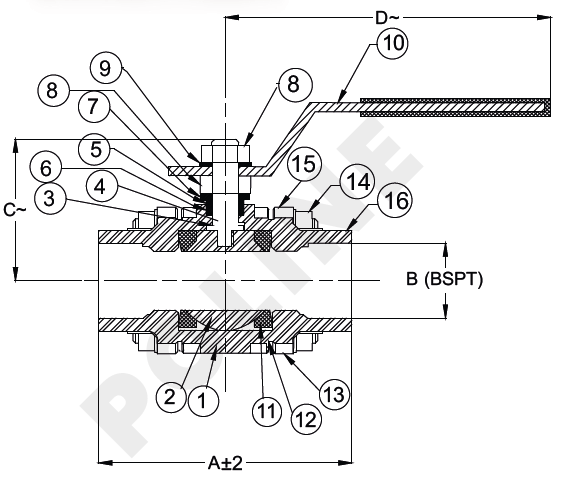

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Cast Steel | ASTM A 216 Gr. WCB | 1 |
| 2 | Ball | Stainless Steel | ASTM A 276 Type 304 / ASTM A 351 Gr. CF8 | 1 |
| 3 | Thrust Washer | PTFE 35% Carbon Filled | - | 1 |
| 4 | Stem | Stainless Steel | ASTM A 276 Type 316 | 1 |
| 5 | Packing Ring | PTFE 35% Carbon Filled | - | 2 |
| 6 | Gland | Stainless Steel | ASTM A 276 Type 304 | 1 |
| 7 | Cup Washer | Stainless Steel | ASTM A 276 Type 304 | 2 |
| 8 | Nut | H.T Steel | ASTM A 194 Gr. 2H | 2 |
| 9 | Spring Washer | Spring Steel | EN 47 Gr. B | 1 |
| 10 | Lever | Carbon Steel | - | 1 |
| 11 | Body Seat Ring | PTFE | - | 2 |
| 12 | Gasket | PTFE | - | 2 |
| 13 | Spring Washer | Spring Steel | EN 47 Gr. B | 8 |
| 14 | Studs | Alloy Steel | ASTM A 193 Gr. B7 | 4 |
| 15 | Nuts | H.T Steel | ASTM A 194 Gr. 2H | 8 |
| 16 | End Connector | Cast Steel | ASTM A 216 Gr. WCB | 2 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A ± 2 | B | C- | D~ |
| 15 | 90 | 1/2 | 38 | 155 |
| 20 | 95 | 3/4 | 40 | 160 |
| 25 | 100 | 1 | 57 | 160 |
| 32 | 110 | 1 1/4 | 65 | 160 |
| 40 | 120 | 1 1/2 | 75 | 178 |
| 50 | 130 | 2 | 80 | 178 |
