PB-1004
Forged Brass Ball Valve (Titan Series)
PB-1004
Forged Brass Ball Valve (Titan Series)
Salient Features
- Ball valves are full bore, two-piece design, quarter-turn, handle-operated
- Valve body is made of IS6912: FLB high-strength nickel-plated brass by hot forging.
- Suitable to control the flow of fuel gases, Oil, and air in any threaded piping system.
- Screwed Female Ends to IS 554/BS 21/ISO 7
Test Pressure (Hydrostatic):
- Working Pressure: up to 40 Bar
- Working Temperature:-20°C to+180°C

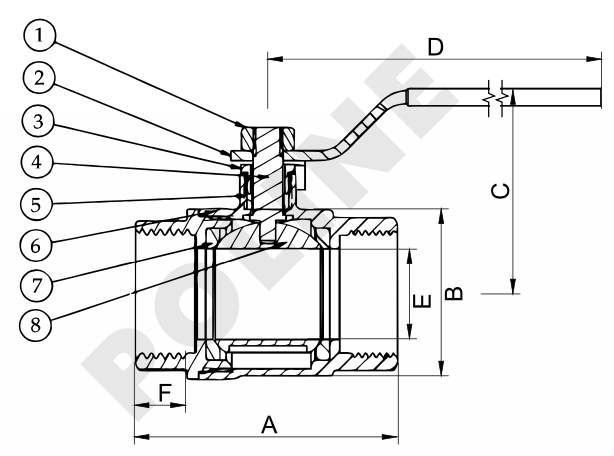

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | BODY | FORGED BRASS | IS 6912:FLB | 1 |
| 2 | HANDLE | STAINLESS STEEL | - | 1 |
| 3 | GLAND NUT | BRASS CHROME PLATED | - | 1 |
| 4 | SPINDLE | FORGED BRASS | IS 6912 : FLB | 1 |
| 5 | SEAL RING | PTFE | - | 1 |
| 6 | BONNET | FORGED BRASS | IS 6912 : FLB | 1 |
| 7 | SEAT RING | PTFE | - | 2 |
| 8 | BALL | FORGED BRASS (HARD CHROME PLATED) | IS 6912 : FLB | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
