PFS -4002A
Forged Steel Globe Valve (Class 800) (Full Bore)
PFS -4002A
Forged Steel Globe Valve (Class 800) (Full Bore)

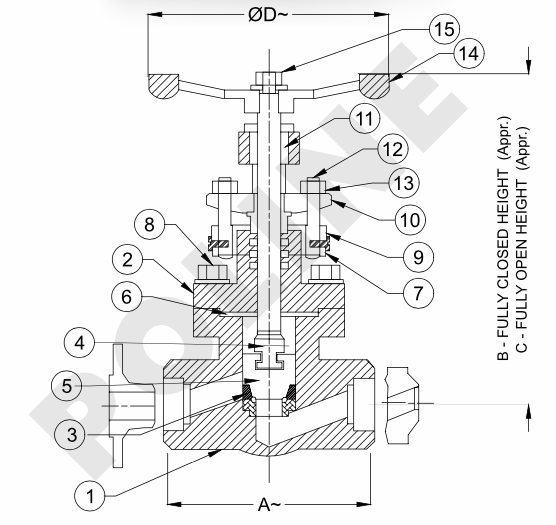

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Forged Steel | ASTM A105 | 1 |
| 2 | Bonnet | Forged Steel | ASTM A105 | 1 |
| 3 | Seat Ring | Stainless Steel | ASTM A276 TP 410 + ST6 | 2 |
| 4 | Wedge | Stainless Steel | ASTM A276 TP 410 + ST6 | 1 |
| 5 | Spindle | Stainless Steel | ASTM A276 TP 410 | 1 |
| 6 | Gasket | Spiral Wound | S.S (TYPE 304) GRAPHITE FILLED | 1 |
| 7 | Packing | Non Asbestos Graphite With Corrosion Inhibitor | - | 4 |
| 8 | Bolt | Alloy Steel | ASTM A193 GR. B7 | 4 |
| 9 | Gland Bush | Stainless Steel | SS410 | 1 |
| 10 | Gland Flange | Stainless Steel | ASTM A276 TP 410 | 1 |
| 11 | Yoke Sleeve | Stainless Steel | SS416 | 1 |
| 12 | Eye Bolt | Alloy Steel | ASTM A193 GR. B7 | 2 |
| 13 | Eye Bolt Nut | Alloy Steel | ASTM A193 GR. 2H | 2 |
| 14 | Handwheel | Ductile Iron | ASTM A 536 / IS 1865 | 1 |
| 15 | Handwheel Nut | Alloy Steel | ASTM A193 GR. 2H | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
