PB-1005
Mini ball Valve (M x F)
Salient Features
- Ball valve are full bore, quarter turn, Knob Handle operated
- Valve body is made of IS6912: FLB high strength chrome plated brass by hot forging.
- Suitable to control the flow of water and air in any threaded piping system.
- Screwed Female Ends to IS 554 / BS 21 / ISO 7
Test Pressure(Hydrostatic):
- Working Pressure: up to 16 Bar
- Working Temperature: -20° to +120°

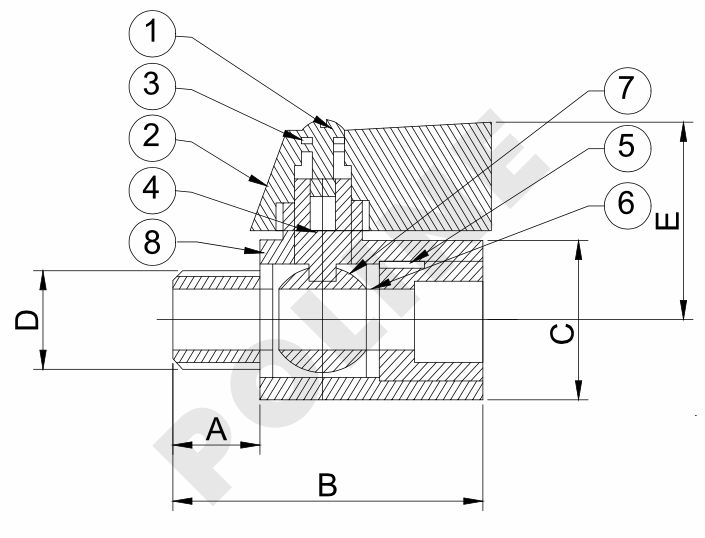

| MATERIAL LIST |
| Part No |
Part Name |
Material |
Specification |
Qty |
| 1 |
SCREW |
ZINC PLATED STEEL |
- |
1 |
| 2 |
HANDLE |
POLYMER |
- |
1 |
| 3 |
WASHER |
NBR |
- |
1 |
| 4 |
SPINDLE |
BRASS |
IS 6912:FLB |
1 |
| 5 |
END ADAPTOR |
BRASS |
IS 6912:FLB |
1 |
| 6 |
SEAT RING |
PTFE |
- |
2 |
| 7 |
BALL |
BRASS CHROME PLATED |
IS 6912:FLB |
1 |
| 8 |
BODY |
BRASS CHROME PLATED |
IS 6912:FLB |
1 |
| SUITABLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
| |
|
|
|
|
| Size (inches) |
Size (mm) |
A |
B |
C |
D |
E |
| 1/4" |
08 |
10 |
40 |
16 |
14 |
26 |
| 3/8" |
10 |
12 |
42 |
18 |
16 |
28 |
| 1/2" |
15 |
12 |
44 |
24 |
20 |
32 |
The information provided here serves as guidelines only and is subject to possible modification.
