PSS-5001
1 PC Stainless Steel Ball Valve (S/E) SS304
PSS-5001
1 PC Stainless Steel Ball Valve (S/E) SS304
Salient Features
- Premium Gland Packing System for Reduced Friction
and Smooth Stem Movement.
- Design Standard : As per BS5351/ IS 9890-1981
- End connection : Screwed end BSP/NPT
- Testing Standard : As per BS5146, ISO 5208/ API 598
Technical Pressure :

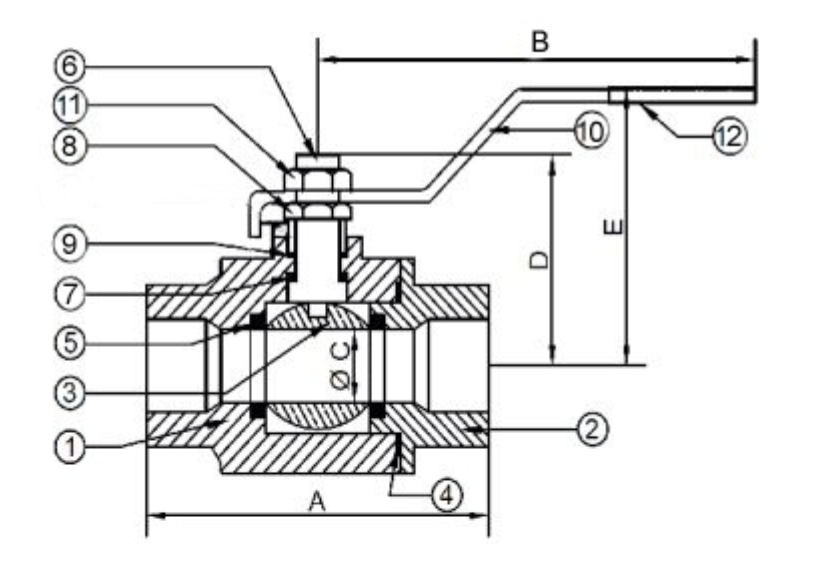

| MATERIAL LIST |
| Part No |
Part Name |
Material |
Specification |
Qty |
| 1 |
Body |
SS304 |
- |
1 |
| 2 |
Body Nut |
SS 304 |
- |
1 |
| 3 |
Body Gasket |
PTFE |
- |
1 |
| 4 |
Ball |
SS202 / 304 |
- |
1 |
| 5 |
Ball Seat |
PTFE |
- |
2 |
| 6 |
Stem |
SS202 / 304 / |
- |
1 |
| 7 |
Stem Seat |
PTFE |
- |
1 |
| 8 |
Gland Nut |
SS202/304 |
- |
1 |
| 9 |
Gland Packing |
PTFE |
- |
1 |
| 10 |
Handle |
SS 202/304 |
- |
1 |
| 11 |
Handle Nut |
SS202/304 |
- |
1 |
| 12 |
Sleeve |
PVC |
- |
1 |
| SUITABLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
| |
|
|
|
|
| DN |
Size (Inch) |
A |
B |
ØC |
D |
E |
| 8 |
1/4" |
50 |
87 |
9 |
36 |
45 |
| 10 |
3/8" |
50 |
87 |
10 |
36 |
45 |
| 15 |
1/2" |
57 |
100 |
14 |
43 |
52 |
| 20 |
3/4" |
67 |
100 |
19 |
46 |
55 |
| 25 |
1" |
76 |
120 |
25 |
58 |
72 |
| 32 |
1 1/4" |
85 |
120 |
32 |
65 |
78 |
| 40 |
1 1/2" |
97 |
155 |
38 |
74 |
92 |
| 50 |
2" |
113 |
155 |
50 |
88 |
106 |
| 65 |
2 1/2" |
139 |
235 |
63 |
110 |
125 |
| 80 |
3" |
155 |
235 |
75 |
125 |
140 |
| 100 |
4" |
180 |
235 |
100 |
140 |
150 |
The information provided here serves as guidelines only and is subject to possible modification.
