PSS-5003
2 PC Stainless Steel Ball Valve (F/E) SS 304
PSS-5003
2 PC Stainless Steel Ball Valve (F/E) SS 304

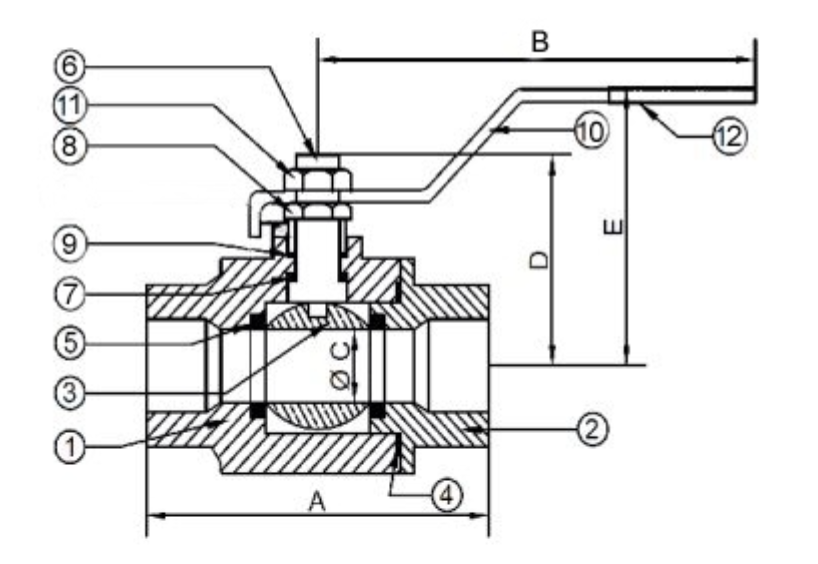

| MATERIAL LIST |
| Part No |
Part Name |
Material |
Specification |
Qty |
| 1 |
Body |
SS 304 |
- |
1 |
| 2 |
Body Tap |
SS 304 |
- |
1 |
| 3 |
Ball |
SS 304 |
- |
1 |
| 4 |
Stem |
SS 202 |
- |
1 |
| 5 |
Gland Nut |
SS 2020 |
- |
1 |
| 6 |
Ball Seat |
PTFE |
- |
2 |
| 7 |
Stem Seat |
PTFE |
- |
1 |
| 8 |
Gland Packing |
PTFE |
- |
1 |
| 9 |
Body Gasket |
PTFE |
- |
1 |
| 10 |
Handle |
SS202 |
- |
1 |
| 11 |
Bolt |
SS202 |
- |
4 |
| 12 |
Stopper |
SS202 |
- |
1 |
| 13 |
Handle Nut |
SS202 |
- |
1 |
| 14 |
Sleeve |
PVC |
- |
1 |
| SUITABLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
| |
|
|
|
|
| DN |
Size (Inch) |
A |
B |
ØC |
ØD |
ØE |
L |
H |
ØM |
N |
PCD |
| 15 |
1/2" |
108 |
10 |
14 |
35 |
88.5 |
90 |
66 |
16 |
4 |
60 |
| 20 |
3/4" |
118 |
10.5 |
19 |
44 |
98 |
90 |
69 |
16 |
4 |
70 |
| 25 |
1" |
128 |
12 |
25 |
53 |
108.5 |
162 |
78 |
16 |
4 |
79.2 |
| 40 |
1 1/2" |
165 |
13.5 |
38 |
73 |
123.5 |
200 |
89 |
16 |
4 |
98.5 |
| 50 |
2" |
178 |
16 |
50 |
94 |
149 |
200 |
95 |
19 |
4 |
120.6 |
| 65 |
2 1/2" |
192 |
17.5 |
63 |
105 |
177 |
255 |
214 |
19 |
4 |
139.7 |
| 80 |
3" |
203 |
19.5 |
75 |
128 |
190 |
255 |
220 |
19 |
4 |
152.4 |
| 100 |
4" |
229 |
23 |
100 |
157 |
229 |
255 |
233 |
19 |
8 |
190.5 |
The information provided here serves as guidelines only and is subject to possible modification.
