PB-1014
Bronze Ferrul Cock
PB-1014
Bronze Ferrul Cock
Salient Features
- Strictly conforming to IS:2692-1989
- Excellent in performance for heavy duty full flow.
- Due to high tollerance of sudden pressure it can withstand heavy impact.
Test Pressure(Hydrostatic):
- Shell : 20 Bar
- Seat : 15 Bar
- Maximum Working Temperature: +225°

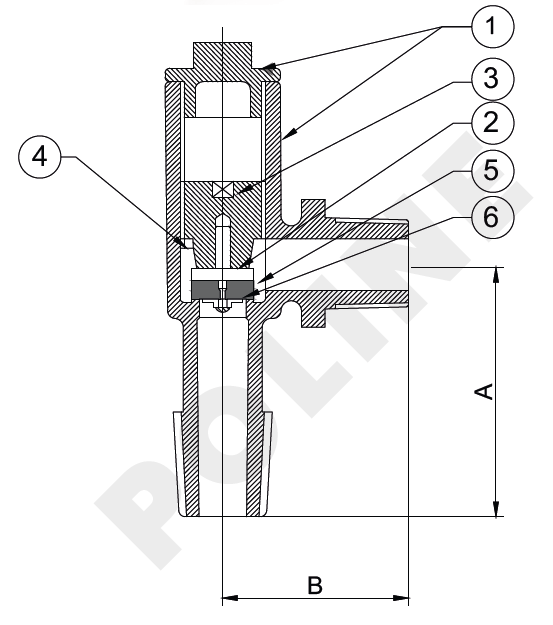

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | BODY & BONNET | BRONZE | IS:318 LTB-2 | 1 |
| 2 | DISC & DISC NUT | BRASS | IS:1264 DC B-2 | 1 |
| 3 | PLUG | BRONZE | IS:318 LTB-2 | 1 |
| 4 | JOINT WASHER | LEATHER | - | 1 |
| 5 | RUBBER WASHER | RUBBER | IS:4346 | 1 |
| 6 | COPPER WASHER | COPPER | IS: 3487 | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
