Cast Iron Sluice Valve PN1.6 (F/E) Non Rising Stem 780

Cast Iron Sluice Valve PN1.6 (F/E) Non Rising Stem 780

Salient Features

Designed according to IS 14846 PN 1.6 specifications.
Features a bolted bonnet with an internal screw and a non-rising stem.
Built with a robust and durable design.
Operated using a hand wheel.
Flanged ends conforming to IS 1538 standards.

Technical Data

Shell : 2.4 MPa
Sear : 1.6 MPa
Working Temperature: 45°C

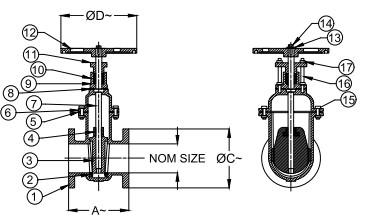

MATERIAL LIST
Part No	Part Name	Material	Specification	Qty
1	Body	Cast Iron	IS 210 Gr. FG 200	1
2	Seat Ring	Bronze	IS 318 Gr. LTB 2	4
3	Hollow Wedge	Cast Iron	IS 210 Gr. FG 200	1
4	Stem Bush	Bronze	IS 318 Gr. LTB 2	1
5	Gasket	Rubber	IS 638 Type B	1
6	Bonnet	Cast Iron	IS 210 Gr. FG 200	1
7	Stem	Stainless Steel	IS 6603 Gr. 12 Cr. 12	1
8	Stuffing Box	Cast Iron	IS 210 Gr. FG 200	1
9	Gland Packing	Hemp & Jute	IS 5414	-
10	Gland Flange	Cast Iron	IS 210 Gr. FG 200	1
11	Hand wheel	Cast Iron	IS 210 Gr. FG 200	1
12	Washer	Carbon Steel	-	1
13	Bolt	Carbon Steel	IS 1363	1
14	Bolt & Nut	Carbon Steel	IS 1363	As Reqd.
15	Stud / Bolt	Carbon Steel	IS 1363	2
16	Nut	Carbon Steel	IS 1363	As Reqd.

SUITABLE FOR
GASES	AIR	STEAM	OIL	WATER

SIZE DESCRIPTION

Size (mm)	A	B	ØC	ØD ±5	E(Max)
50	215	16	165	280	365
65	230	16	185	280	380
80	230	21	200	280	425
100	255	22	220	360	470
125	266	22.5	250	360	485
150	280	23	285	360	595
200	318	24.5	340	450	725
250	356	26	395	640	835
300	380	27.5	445	640	910
400	690	29	505	640	1030
450	750	30	565	730	1110
500	850	32	615	800	1210
550	880	33	670	800	1340
600	1000	36	780	800	1500

The information provided here serves as guidelines only and is subject to possible modification.
