Butterfly Valve Wafer Type PN16 with Electrical Actuator
Butterfly Valve Wafer Type PN16 with Electrical Actuator
Product Overview
The Poline PN16 Wafer Butterfly Valve with Electric Actuator is engineered for automated flow control and shut-off in HVAC, water distribution, fire fighting, and industrial pipeline systems. Manufactured as per IS 13095, this wafer type butterfly valve combines reliable valve sealing performance with precise electric actuation for remote operation.
Equipped with a stainless steel disc, integrally moulded resilient liner, and compact wafer body design, the valve ensures leak-tight performance and long service life. The electric actuator includes position indicator, adjustable open/close stoppers, and inbuilt micro switch feedback for accurate valve status monitoring.
Fully compatible with BMS (Building Management Systems) and available with IP67 protection for outdoor installations.
Key Features
- Manufactured as per IS 13095
- Wafer type compact design for flange mounting
- Electric actuator operated for remote automation
- Stainless steel disc for corrosion resistance
- Integrally moulded rubber lining for tight shut-off
- Position indicator for valve open/close visibility
- Adjustable stoppers for open and closed positions
- Inbuilt micro switch feedback
- BMS compatible
- IP67 protection available for outdoor use
- Optional extended wiring for easy installation
- Power supply options: 24V / 230V
- Compatible between flanges:
- BS10 Table D / E / F
- ASA Class 150
Technical Specifications
- Shell : 2.4 MPa
- Seat : 1.76 MPa
- Working Pressure: 1.6 MPa
- Working Temperature: 90°C
Applications
The Poline Electric Actuated Butterfly Valve is widely used in:
- HVAC automation systems
- Chilled water lines
- Commercial buildings
- Water treatment plants
- Fire fighting systems
- Industrial process automation
- Cooling water systems
- Utility pipelines
- Building Management Systems (BMS)
Why Choose Poline Electric Butterfly Valves?
Poline Valves manufactures dependable automated valve solutions built for precision control, low maintenance, and long operational life. Our electrically actuated butterfly valves are ideal for modern infrastructure and process automation projects.
Request a Quote
For pricing, voltage options, automation requirements, OEM supply, or bulk orders for PN16 Wafer Butterfly Valve with Electric Actuator, contact Poline Valves today.

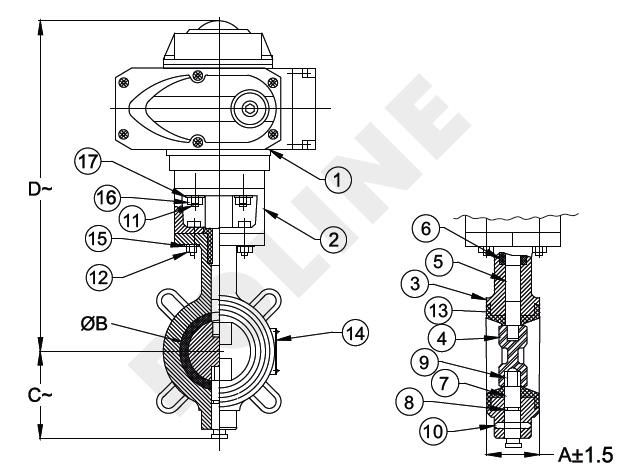

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Electrical Actuator | - | - | 1 |
| 2 | Actuator Base | Carbon Steel | - | 1 |
| 3 | Body | Cast Iron | IS 210 FG 200 | 1 |
| 4 | Disc | Stainless Steel | IS 3444 Gr.1 / ASTM A351 Gr.CF8 | 1 |
| 5 | Upper Stem | Stainless Steel | IS 6603 Gr.12 Cr 12 | 1 |
| 6 | Packing Bush | Bronze | IS 318 Gr. LTB 2 | 1 |
| 7 | Lower Stem | Stainless Steel | IS 6603 Gr.12 Cr 12 | 1 |
| 8 | ‘O’ Ring | Nitrile Rubber | IS 5192-1 | 1 |
| 9 | Bush | PTFE | BS EN 12086-1 | 1 |
| 10 | L-Key Screw | Carbon Steel | - | 1 |
| 11 | Studs for Actuator | Carbon Steel | - | 4 |
| 12 | Locking Washer | Spring Steel | - | 1 |
| 13 | Body Lining | EPDM/ Nitrile | IS 5192-1 | 1 |
| 14 | Name Plate | Aluminium | - | 1 |
| 15 | L-Key Bolts & Nuts | Carbon Steel | - | 4 Each |
| 16 | Nuts | Carbon Steel | - | 4 |
| 17 | Spring Washer | Spring Steel | - | 4 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A | ØB | C | D | Actuator Model No. |
| 40 | 33 | 40 | 57 | 265 | ZSY 1 |
| 50 | 43 | 53 | 73 | 275 | ZSY 1 |
| 65 | 46 | 67 | 80 | 290 | ZSY 1 |
| 80 | 46 | 81 | 88 | 295 | ZSY 1 |
| 100 | 52 | 101 | 110 | 325 | ZSY 2 |
| 125 | 56 | 127 | 122 | 372 | ZSY 2 |
| 150 | 56 | 151 | 151 | 400 | ZSY 2 |
| 200 | 60 | 201 | 180 | 457 | ZSY 3 |
| 250 | 68 | 252 | 220 | 516 | ZSY 4 |
| 300 | 78 | 301 | 250 | 540 | ZSY 4 |
