PCI-2018
Cast Iron Non Return Valve PN1.6 (Flanged)
PCI-2018
Cast Iron Non Return Valve PN1.6 (Flanged)
Salient Features
- Compliant with IS 5312 – 1 Design Standards.
- Flanged ends according to IS 1538 Specifications.
- Swing-Type Seating Design.
- Secured with a Bolted Cover.
- Replaceable Seat with A High-Quality Rubber Flap.
- Flexible Installation Options (Horizontal or Vertical).
Technical Data
- Shell : 2.4 MPa
- Sear : 1.6 MPa
- Working Temperature: 80°C

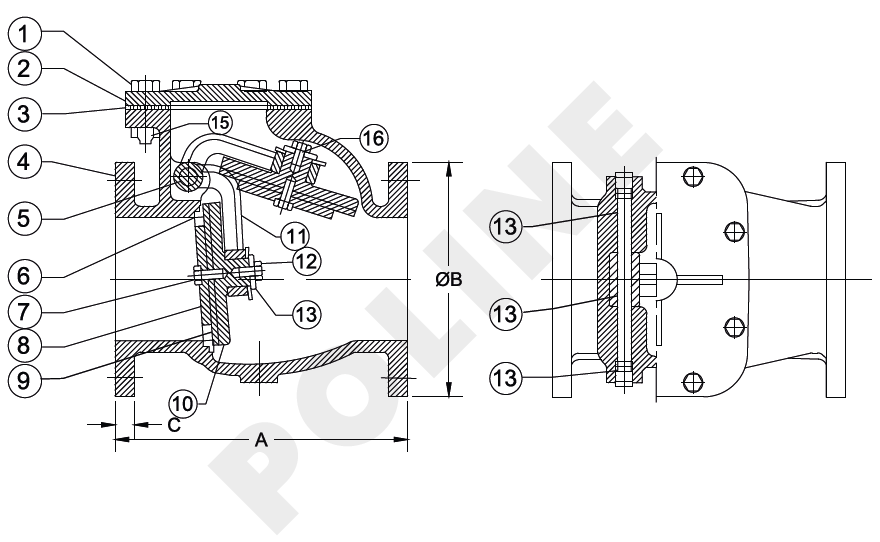

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Cast Iron | IS 210 FG 200 | 1 |
| 2 | Cover | Cast Iron | IS 210 FG 200 | 1 |
| 3 | Gasket | Nitrile Rubber | IS 638 Type B | 1 |
| 4 | Hinge Pin | Stainless Steel | IS 6603 | 1 |
| 5 | Body Seat Ring | Bronze | IS 318 LTB 2 | 1 |
| 6 | Bolts | Carbon Steel | IS 1363 | 1 |
| 7 | Washer | Carbon Steel | - | 1 |
| 8 | Disc Facing | Nitrile Rubber | IS 638 Type B | 1 |
| 9 | Disc | Cast Iron | IS 210 FG 200 | 1 |
| 10 | Hinge | Cast Iron | IS 210 FG 200 | 1 |
| 11 | Bolt (Optional) | Carbon Steel | IS 1363 | 1 |
| 12 | Plug | Stainless Steel | IS 6603 | 2 |
| 13 | Nut | Carbon Steel | IS 1363 | As Reqd. |
| 14 | Split Pin (Optional) | Carbon Steel | - | 1 |
| 15 | Hinge Bush | Bronze | IS 318 LTB 2 | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A | ØB | C |
| 50 | 203 | 165 | 16 |
| 65 | 216 | 185 | 16 |
| 80 | 241 | 200 | 21 |
| 100 | 292 | 220 | 22 |
| 125 | 330 | 250 | 22 |
| 150 | 256 | 285 | 23 |
| 200 | 495 | 340 | 24 |
| 250 | 622 | 395 | 26 |
| 300 | 698 | 445 | 28 |
