PCI-2017
Ductile Iron Resilient Seated Gate Valve PN1.6
PCI-2017
Ductile Iron Resilient Seated Gate Valve PN1.6
Salient Features
- Designed Standard TS EN 1171 PN 1.6
- Bolted Bonnet, Outside Screw, Yoke Type, Rising Spindle, Solid Wedge.
- Rigid and Sturdy Design
- Hand Wheel Operated.
- Flange Ends as per TS EN1092-2.
- Provision of Re-Packing under pressure.
Technical Data
- Shell : 2.4 MPa
- Sear : 1.6 MPa
- Working Temperature: 45°C

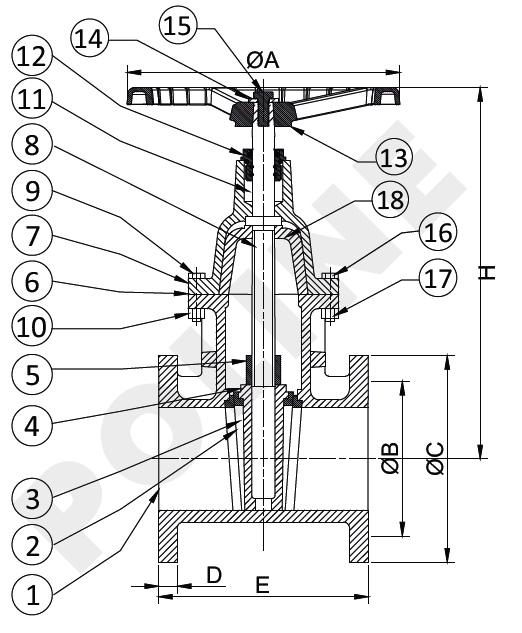

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Ductile Iron | IS 1865 Gr. SG 500/7 | 1 |
| 2 | Body Seat Ring | Bronze | IS 318 Gr. LTB 2 | 2 |
| 3 | Wedge Ring | Bronze | IS 318 Gr. LTB 2 | 2 |
| 4 | Wedge | Ductile Iron | IS 1865 Gr. SG 500/7 | 1 |
| 5 | Stem Bush | Bronze | IS 318 Gr. LTB 2 | 1 |
| 6 | Gasket | Rubber | IS 638 Type B | 1 |
| 7 | Bonnet | Ductile Iron | IS 1865 Gr. SG 500/7 | 1 |
| 8 | Stem | Stainless Steel | IS 6603 Gr. 12 Cr. 12 | 1 |
| 9 | Bolt | Carbon Steel | IS 1363 Part 1 Class 4.6 | As Reqd. |
| 10 | Nuts | Carbon Steel | IS 1363 Part 3 Class 4.0 | As Reqd. |
| 11 | Packing | Hemp & Jute | IS 5414 | 1 |
| 12 | Gland Flange | Ductile Iron | IS 1865 Gr. SG 500/7 | 1 |
| 13 | Handwheel | Ductile Iron | IS 1865 Gr. SG 500/7 | 1 |
| 14 | Washer | Carbon Steel | - | 1 |
| 15 | Bolt | Carbon Steel | IS 1363 Part 1 Class 4.6 | 1 |
| 16 | Nuts | Carbon Steel | IS 1363 Part 3 Class 4.0 | 2 |
| 17 | Bolts | Carbon Steel | IS 1363 Part 1 Class 4.6 | 1 |
| 18 | Thrust Plate* | Ductile Iron | IS 1865 Gr. SG 500/7 | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A | B | ØC | ØD ±5 | E(Max) |
| 50 | 150 | 20 | 165 | 160 | 180 |
| 65 | 170 | 20 | 185 | 160 | 230 |
| 80 | 180 | 22 | 200 | 160 | 245 |
| 100 | 190 | 24 | 220 | 200 | 265 |
| 125 | 200 | 26 | 250 | 250 | 355 |
| 150 | 210 | 26 | 285 | 250 | 400 |
| 200 | 230 | 30 | 340 | 315 | 490 |
| 250 | 250 | 32 | 405 | 315 | 615 |
| 300 | 270 | 32 | 460 | 315 | 700 |
| 350 | 290 | 36 | 520 | 400 | 835 |
| 400 | 310 | 38 | 580 | 400 | 910 |
| 500 | 350 | 42 | 715 | 500 | 1120 |
| 600 | 390 | 48 | 840 | 500 | 1330 |
